Plot Missing data or Reporting Rate over time

Source: R/reporting_rate.R
reporting_rate_plot.Rd

This function visualizes the proportion of missing data or reporting rate for specified variables in a dataset. It creates a tile plot where the x-axis can represent any categorical time such as time (e.g., year, month). The function can handle three different scenarios:

  1. District-level analysis with specified variables

  2. Variable-level analysis without district grouping

  3. Facility-level analysis

Usage

reporting_rate_plot(
  data,
  x_var,
  y_var = NULL,
  vars_of_interest = NULL,
  hf_col = NULL,
  reprate_col = NULL,
  key_indicators = c("allout", "conf", "test", "treat", "pres"),
  method = 3,
  nonreport_window = 6,
  reporting_rule = "any_non_na",
  require_all = FALSE,
  use_reprate = TRUE,
  full_range = TRUE,
  weighting = FALSE,
  weight_var = NULL,
  weight_window = 12,
  exclude_current_x = TRUE,
  cold_start = "median_within_y",
  target_language = "en",
  source_language = "en",
  lang_cache_path = tempdir(),
  plot_path = NULL,
  compress_image = FALSE,
  image_overwrite = TRUE,
  compression_speed = 1,
  compression_verbose = TRUE,
  plot_scale = 1,
  plot_width = NULL,
  plot_height = NULL,
  plot_dpi = 300,
  show_plot = TRUE,
  include_plot_title = FALSE,
  y_axis_label = NULL,
  x_axis_breaks = 6,
  ...
)

Arguments

data

A data frame containing the data to be visualized

x_var

A character string specifying the time variable in 'data' (e.g., "year", "month"). Must be provided.

y_var

Optional grouping variable name (if any)

vars_of_interest

An optional character vector specifying the variables to be visualized in 'data'. If NULL, all variables except 'x_var' and 'y_var' will be used.

hf_col

Character. Optional (defaults to NULL). Name of the column containing unique health facility IDs. When provided with key_indicators, enables facility-level analysis and proper exclusion of inactive facilities from denominators, resulting in more accurate missing rates.

reprate_col

Character. Optional (defaults to NULL). Name of a column containing pre-calculated facility-level reporting rates. When provided, the function aggregates this column by x_var (and y_var if specified) instead of calculating reporting rates from raw indicators. The column should contain numeric values in decimal (0-1) or percentage (0-100) format. When using this parameter, vars_of_interest and calculation-related parameters (key_indicators, method, nonreport_window, reporting_rule, require_all, weighting, etc.) are ignored. The hf_col parameter can still be used for counting facilities.

key_indicators

Optional. Character vector of indicators used to define facility activity in scenario 1. Defaults to c("allout", "conf", "test", "treat", "pres").

method

Character or numeric. Classification method for facility activity status. Can be numeric (1, 2, 3) or character ("method1", "method2", "method3"). Defaults to 3. See classify_facility_activity for details.

nonreport_window

Integer. Minimum number of consecutive non-reporting months to classify a facility as inactive in method 3. Defaults to 6.

reporting_rule

Character. Defines what counts as reporting: "any_non_na" (default, counts NA as non-reporting, 0 counts as reported) or "positive_only" (requires >0 value to count as reported).

require_all

Logical. When TRUE and multiple vars_of_interest are provided, calculates the proportion of facilities reporting ALL variables (complete data). When FALSE (default), calculates per-variable reporting rates. Only applies to facility-level analysis (when hf_col is provided).

use_reprate

A logical value. If TRUE, the reporting rate is visualized; otherwise, the proportion of missing data is visualized. Defaults to TRUE

full_range

A logical value. If TRUE, the fill scale will use the full range from 0 to 100. If FALSE, the fill scale will use the range of values present in the data. Defaults to TRUE.

weighting

Logical. If TRUE, calculate weighted reporting rates based on facility size. Defaults to FALSE.

weight_var

Character. Column name containing the weight variable (e.g., "allout" for outpatient volume). Required if weighting = TRUE.

weight_window

Integer. Number of periods for rolling weight calculation. Defaults to 12.

exclude_current_x

Logical. If TRUE, exclude current period from weight calculation. Defaults to TRUE.

cold_start

Character. Method for handling initial periods: "median_within_y" (default) or "median_global".

target_language

A character string specifying the language for plot labels. Defaults to "en" (English). Use ISO 639-1 language codes.

source_language

Source language code. If NULL, auto-detection is used. Defaults to NULL.

lang_cache_path

Path to directory for storing translation cache. Defaults to tempdir().

plot_path

A character string specifying the path where the plot should be saved. If NULL (default), plot is not saved.

compress_image

Logical. If TRUE, will compress the saved plot. Defaults to FALSE

image_overwrite

Logical. If TRUE, will overwrite existing files. Defaults to TRUE.

compression_speed

Integer. Speed/quality trade-off from 1 (brute-force) to 10 (fastest). Default is 1.

compression_verbose

Logical. Controls output verbosity. FALSE = silent, TRUE = verbose. Defaults to TRUE.

plot_scale

Numeric. Scaling factor for saved plots. Values > 1 increase size, < 1 decrease size. Default is 1.

plot_width

Numeric. Width of saved plot in inches. If NULL (default), width is calculated automatically based on data.

plot_height

Numeric. Height of saved plot in inches. If NULL (default), height is calculated automatically based on data.

plot_dpi

Numeric. Resolution of saved plot in dots per inch. Default is 300.

show_plot

Logical. If FALSE, the plot is returned invisibly (not displayed). Useful when only saving plots. Default is TRUE.

include_plot_title

Logical. If TRUE, plot titles and subtitles are included. If FALSE, titles are hidden. Default is FALSE.

y_axis_label

Optional character string for y-axis label. If NULL, defaults to y_var name or "Variable" for variable scenario.

x_axis_breaks

Numeric value specifying the interval for x-axis breaks. Default 6. For example, 2 shows every second tick and 6 every sixth.

...

Additional arguments passed to internal functions.

Value

A ggplot2 object. When show_plot is FALSE, returns invisibly.

Examples

# Sample data
hf_data <- data.frame(
  month = rep(as.Date(c("2024-01-01", "2024-02-01", "2024-03-01")), each = 10),
  district = rep(c("North", "South"), each = 5, times = 3),
  facility_id = rep(1:5, times = 6),
  malaria = c(
    10, 0, 15, NA, 8, 12, 0, NA, 7, 9,
    11, 0, 14, 6, NA, 13, 8, 10, 0, 12,
    9, 7, 0, 11, 14, 8, NA, 12, 10, 15
  ),
  pneumonia = c(
    5, 0, NA, 7, 3, 6, 0, 4, NA, 2,
    8, 0, 6, NA, 4, 7, 3, 0, 5, 6,
    4, 0, 7, 5, NA, 6, 0, 8, 4, 3
  )
)

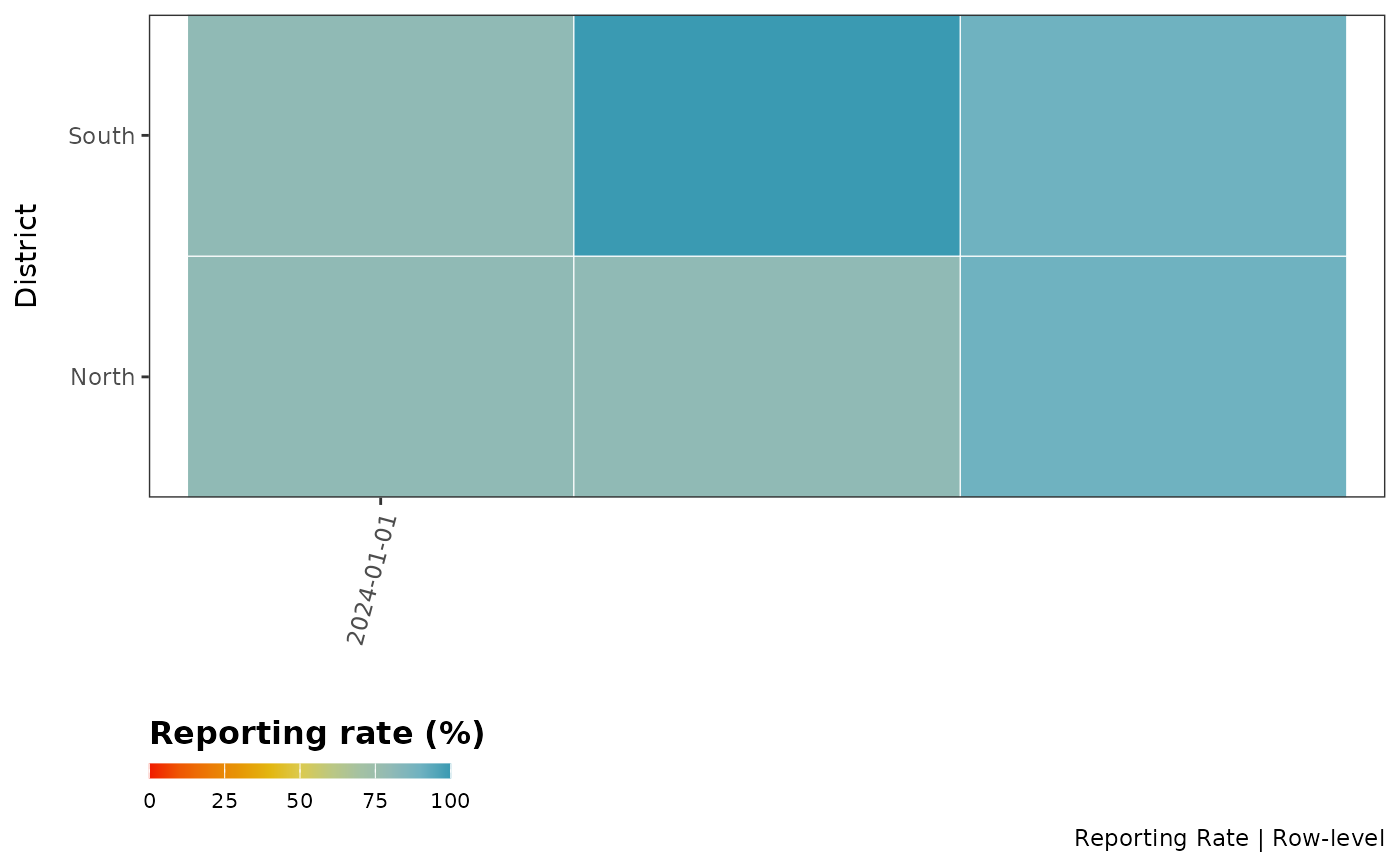

# Scenario 1: District-level analysis - reporting rate by district and month
reporting_rate_plot(
  data = hf_data,
  x_var = "month",
  y_var = "district",
  vars_of_interest = c("malaria", "pneumonia"),
  hf_col = NULL
)
#>
#> ╔ Reporting Rate Plot Configuration ═══════════════════╗
#> ║                                                      ║
#> ║   Analysis Type: Row-level (no facility filtering)   ║
#> ║   Metric: Reporting Rate                             ║
#> ║   Variables: malaria, pneumonia                      ║
#> ║   Grouping: By month and district                    ║
#> ║                                                      ║
#> ╚══════════════════════════════════════════════════════╝
#>
#> Warning: ! No facility identification column (hf_col) provided.
#> ℹ Unable to exclude inactive facilities from denominators.
#> ℹ This may result in inaccurate rates if inactive facilities are present.
#> ℹ Consider providing 'hf_col' parameter to enable facility activity
#>   classification.

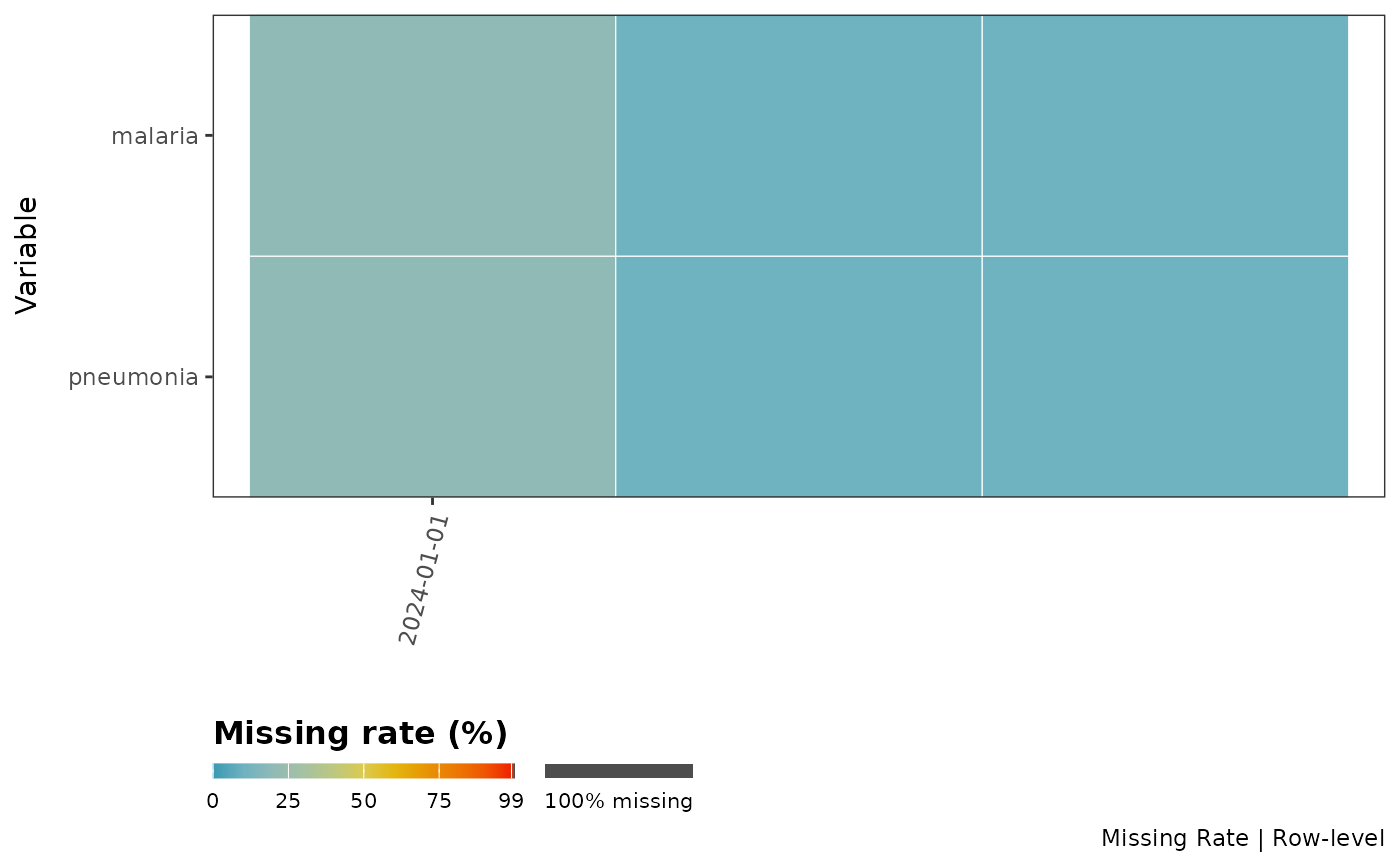

# Scenario 2: Variable-level analysis - missing rate by variable over time
reporting_rate_plot(
  data = hf_data,
  x_var = "month",
  vars_of_interest = c("malaria", "pneumonia"),
  use_reprate = FALSE,
  hf_col = NULL
)
#>
#> ╔ Reporting Rate Plot Configuration ═══════════════════╗
#> ║                                                      ║
#> ║   Analysis Type: Row-level (no facility filtering)   ║
#> ║   Metric: Missing Rate                               ║
#> ║   Variables: malaria, pneumonia                      ║
#> ║   Grouping: By month                                 ║
#> ║                                                      ║
#> ╚══════════════════════════════════════════════════════╝
#>
#> Warning: ! No facility identification column (hf_col) provided.
#> ℹ Unable to exclude inactive facilities from denominators.
#> ℹ This may result in inaccurate rates if inactive facilities are present.
#> ℹ Consider providing 'hf_col' and 'y_var' parameters to enable facility
#>   activity classification.
#> Warning: no non-missing arguments to min; returning Inf
#> Warning: no non-missing arguments to max; returning -Inf
#> Warning: no non-missing arguments to min; returning Inf
#> Warning: no non-missing arguments to max; returning -Inf

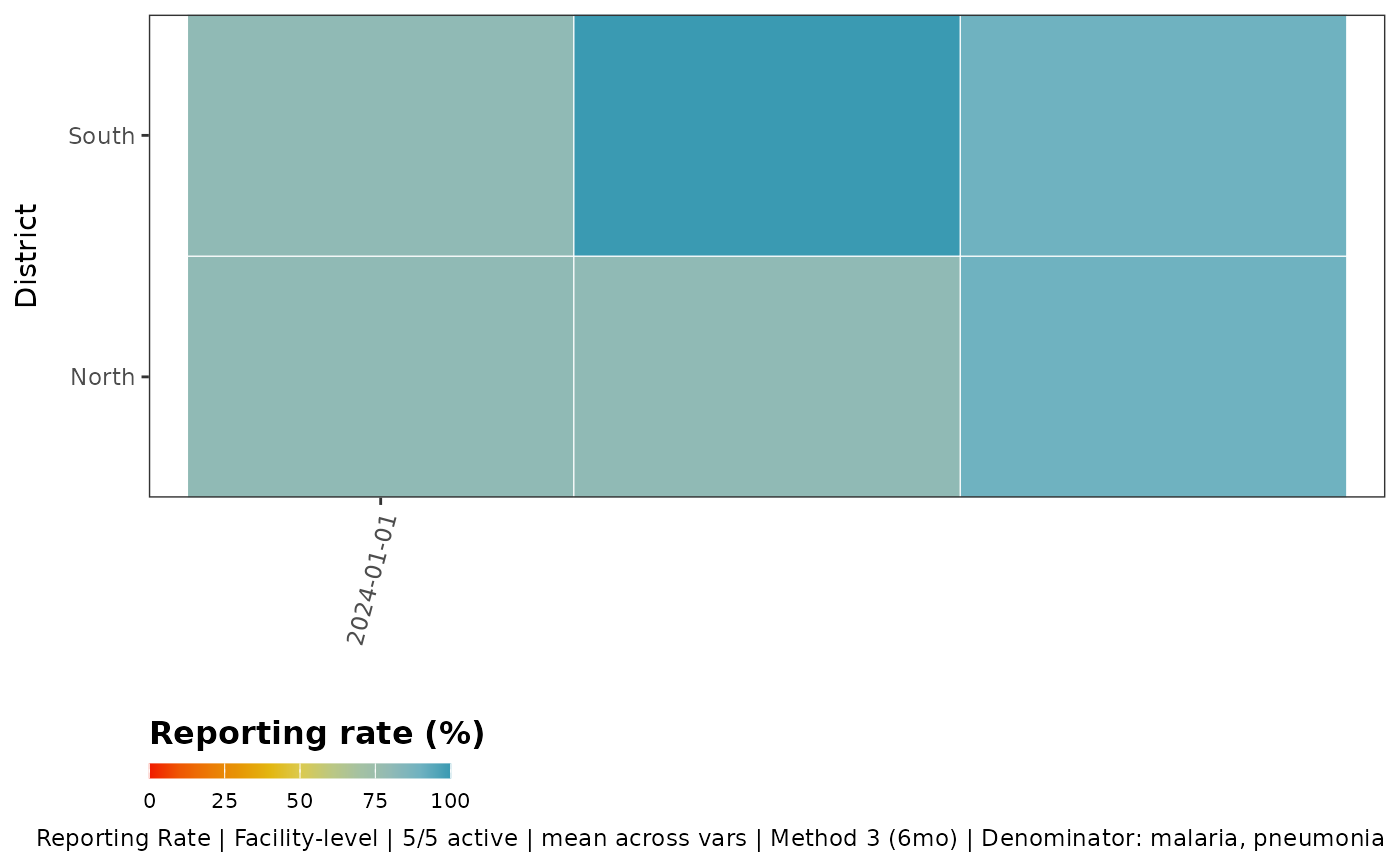

# Scenario 3: Facility-level analysis - reporting rate by facility
# This properly excludes inactive facilities from denominators
reporting_rate_plot(
  data = hf_data,
  x_var = "month",
  y_var = "district",
  vars_of_interest = c("malaria", "pneumonia"),  # Multiple variables now allowed!
  hf_col = "facility_id",
  key_indicators = c("malaria", "pneumonia"),  # Define activity based on these
  method = 3,  # Dynamic activation method
  nonreport_window = 6  # Facilities inactive after 6 months of non-reporting
)
#>
#> ╔ Reporting Rate Plot Configuration ════════════════════════╗
#> ║                                                           ║
#> ║   Analysis Type: Facility-level                           ║
#> ║   Metric: Reporting Rate                                  ║
#> ║   Variables: malaria, pneumonia                           ║
#> ║   Numerator: per-variable                                 ║
#> ║   Grouping: By month and district                         ║
#> ║   Denominator: malaria, pneumonia                         ║
#> ║   Facility activity: Method 3 (inactive after 6 months)   ║
#> ║                                                           ║
#> ╚═══════════════════════════════════════════════════════════╝
#>
#> ℹ Facility activity classification:
#>   5 of 5 facilities are active (100%)
#>   0 facilities are inactive (0%)
#> ✔ Returning data filtered to 5 active facilities (of 5 total)

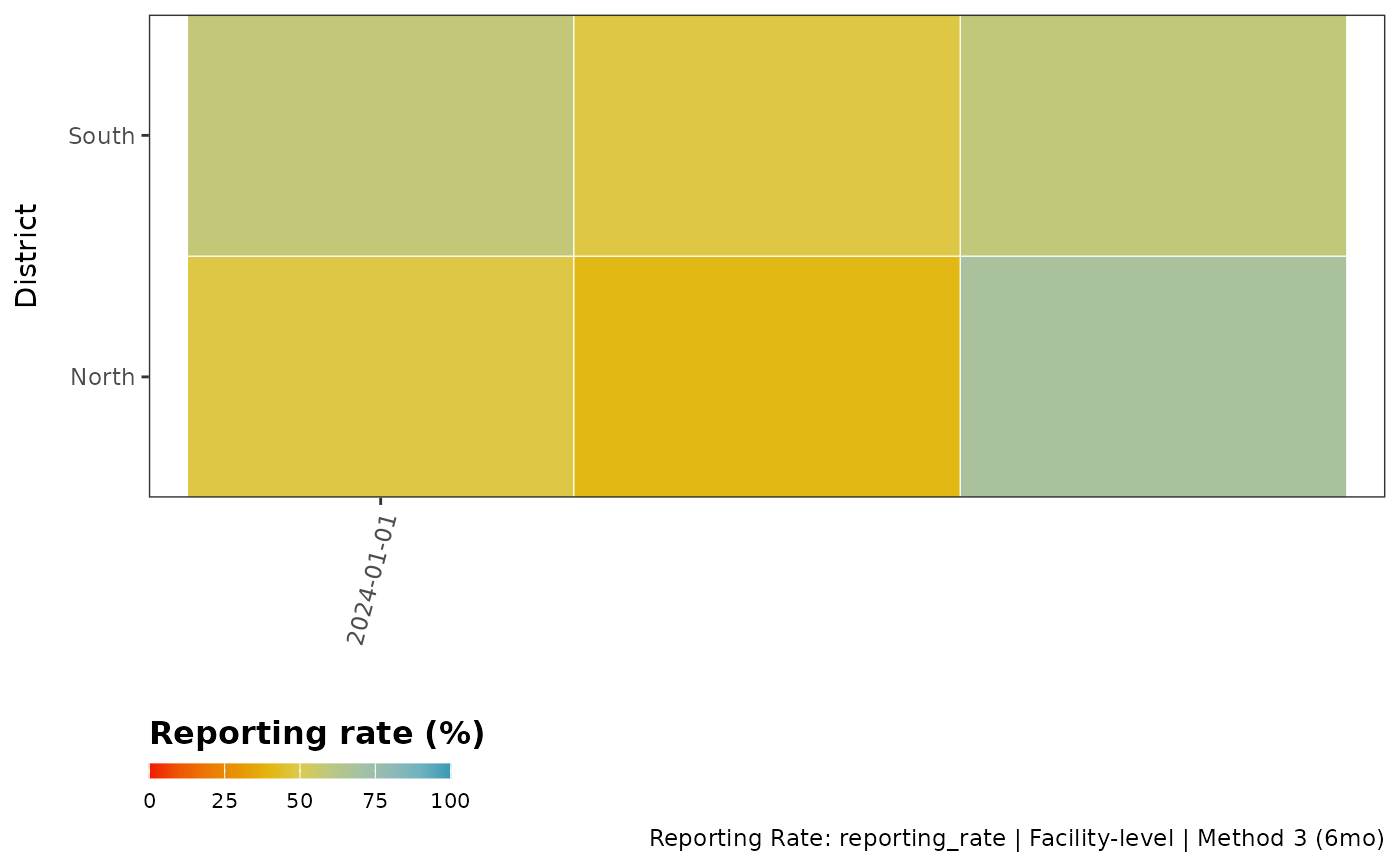

# Scenario 4: Using pre-calculated reporting rates
# When data already has facility-level reporting rates calculated
hf_data_with_reprate <- hf_data
hf_data_with_reprate$reporting_rate <- runif(nrow(hf_data_with_reprate), 0, 1)

reporting_rate_plot(
  data = hf_data_with_reprate,
  x_var = "month",
  y_var = "district",
  reprate_col = "reporting_rate",  # Use pre-calculated rates
  hf_col = "facility_id",
  use_reprate = TRUE
)
#>
#> ╔ Reporting Rate Plot Configuration ════════════════════════╗
#> ║                                                           ║
#> ║   Analysis Type: Facility-level                           ║
#> ║   Metric: Reporting Rate                                  ║
#> ║   Variables:                                              ║
#> ║   Numerator: per-variable                                 ║
#> ║   Grouping: By month and district                         ║
#> ║   Denominator: allout, conf, test, ... (5 total)          ║
#> ║   Facility activity: Method 3 (inactive after 6 months)   ║
#> ║                                                           ║
#> ╚═══════════════════════════════════════════════════════════╝
#>
